Quality Proven Main Components
New Heavy Duty Front
Convenient Maintenance System
Enhanced Heavy Duty Undercarriage
The Most Advanced Hydraulic System
Video Clip
Product Video
Machine in Social Media
Machine in Social Media
Facebook - DX800LC-5B Photo(1)
Facebook - DX800LC-5B Photo(2)
Facebook - DX800LC-5B Photo(3)
Quote
INSIDE

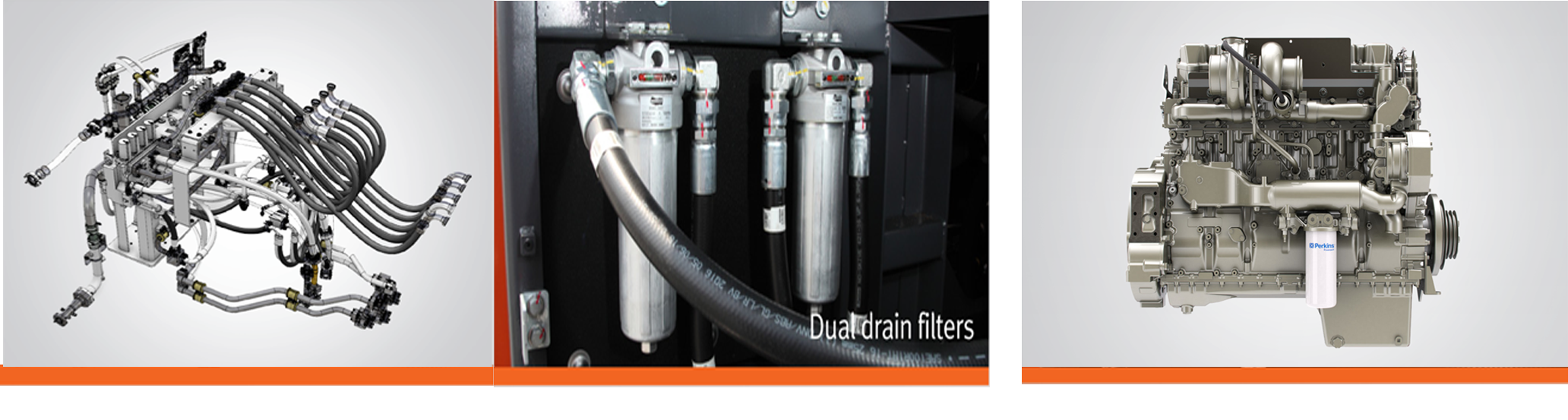

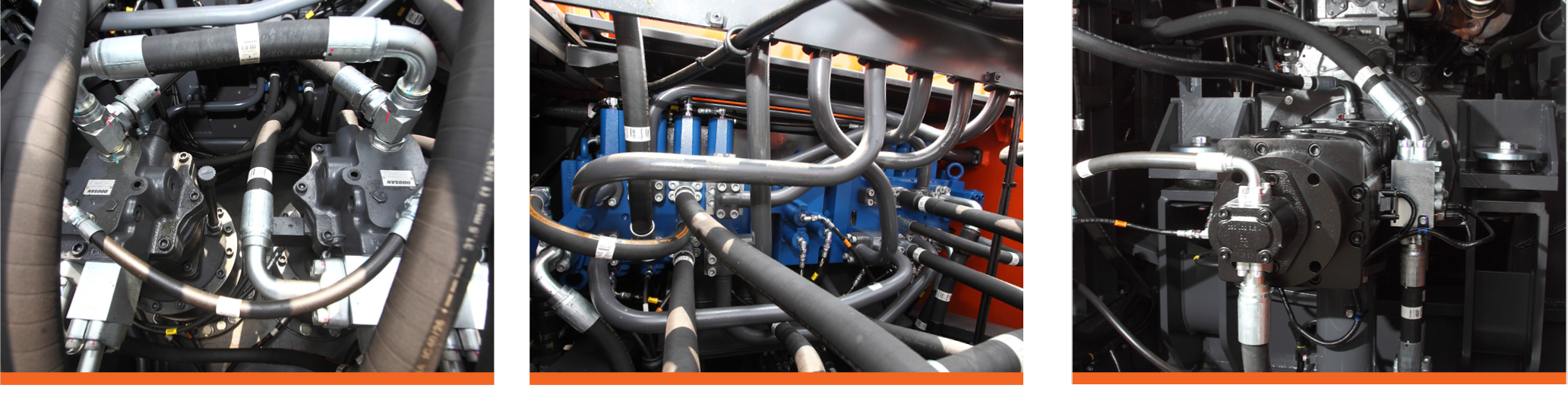

Quality Proven Main Components Manufactured with the finest quality main components customized precisely for large equipment, this new machine offers the Best-in-Class power and durability.
01
02
News Heavy Duty Front The Significantly improved performance of the boom and arm of the DX800LC-5B has considerably enhanced the overall durability of the machine
Boom Improvement
  • Boom foot design changed to increase the pin strength and decrease one-side wear of pin.
  • Flat steel plate for dispersing machine stress.
  • Welding design changed to increase welding part lifetime.
  • Inner reinforce plate changed for dispersing stress.
Arm Improvement
  • Bottom steel plate of arm changed to increase strength of arm structure.
  • Arm center boss changed to lower stress.
  • Arm welding design changed to decrease stress.
  • Diameter of pin increased(130 ℂ ▶ 140 ℂ ) to increase pin strength.
Convenient Maintenance System

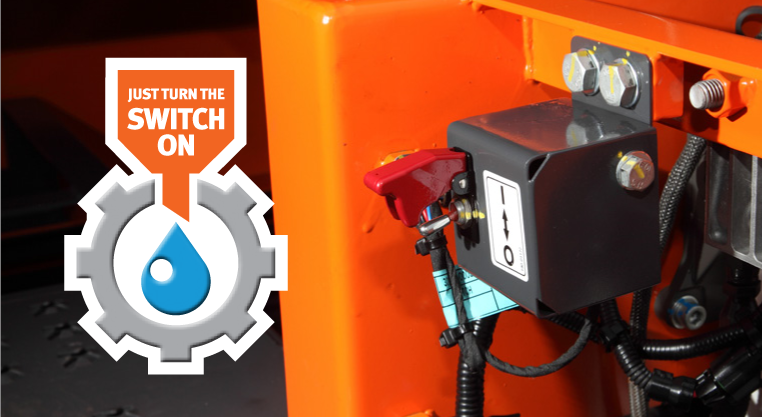

Electric Fuel Transfer Pump (ETP) Use this switch to easily refill fuel for your machine after its inspection or repair.

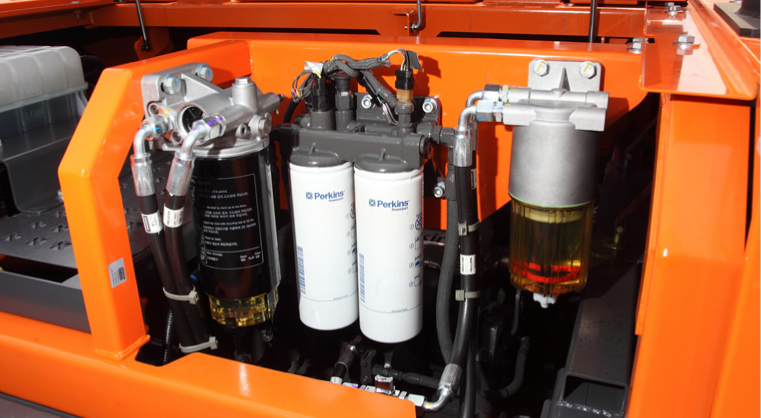

Centralized Fuel Filtration System Water separator, pre-fuel filter and main filter are grouped together to increase engine life and prevent machine failures, making machine inspection or maintenance much easier with one simple access.

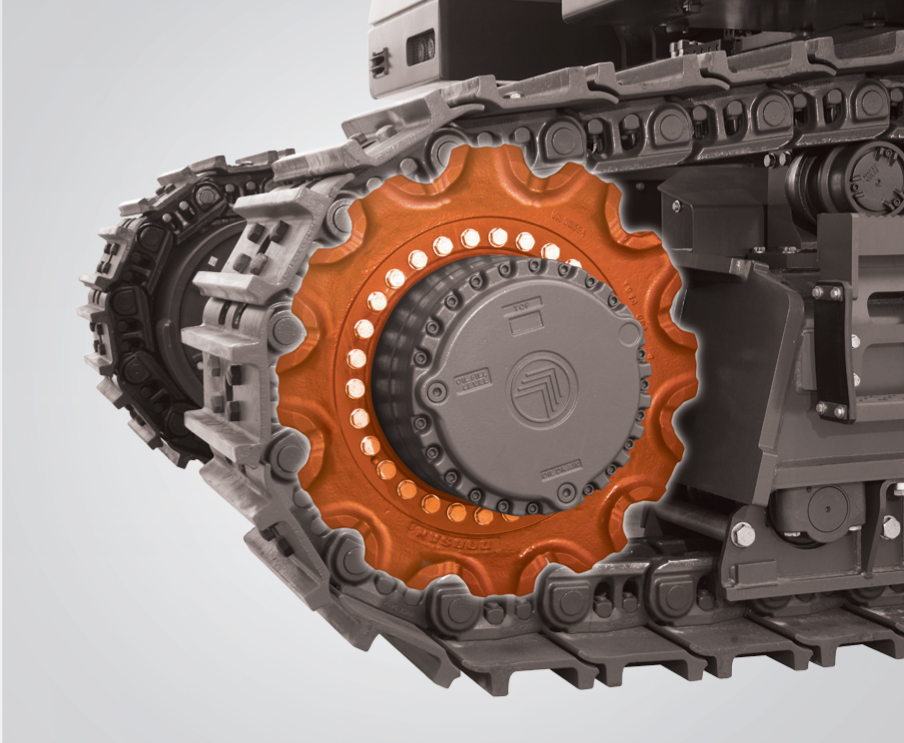

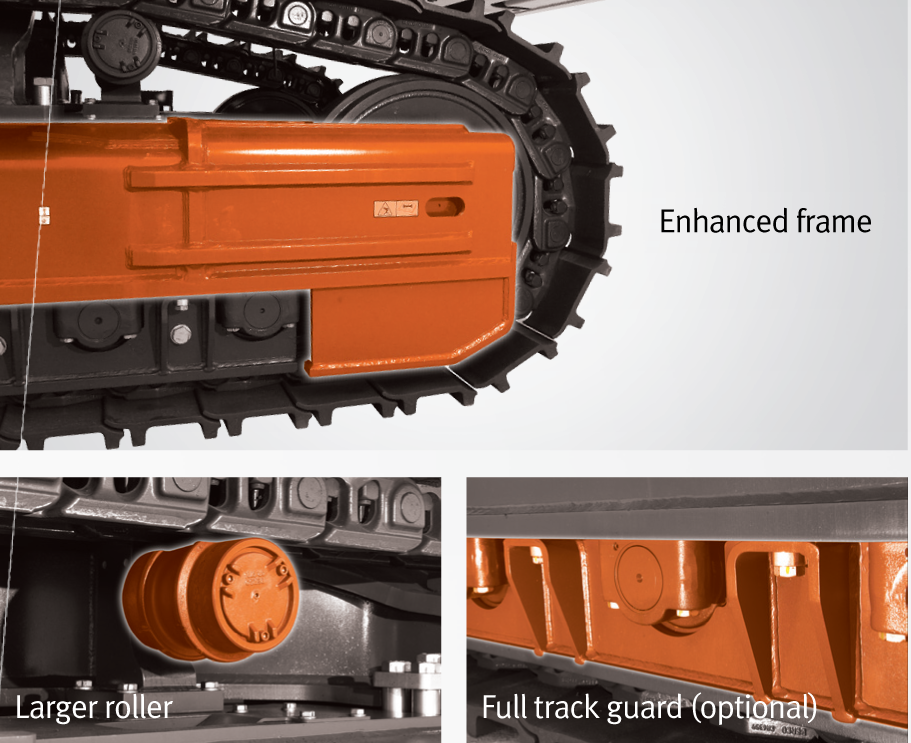

Enhanced Heavy Duty Undercarriage
REINFORCED UNDERCARRIAGE
REINFORCED UNDERCARRIAGE

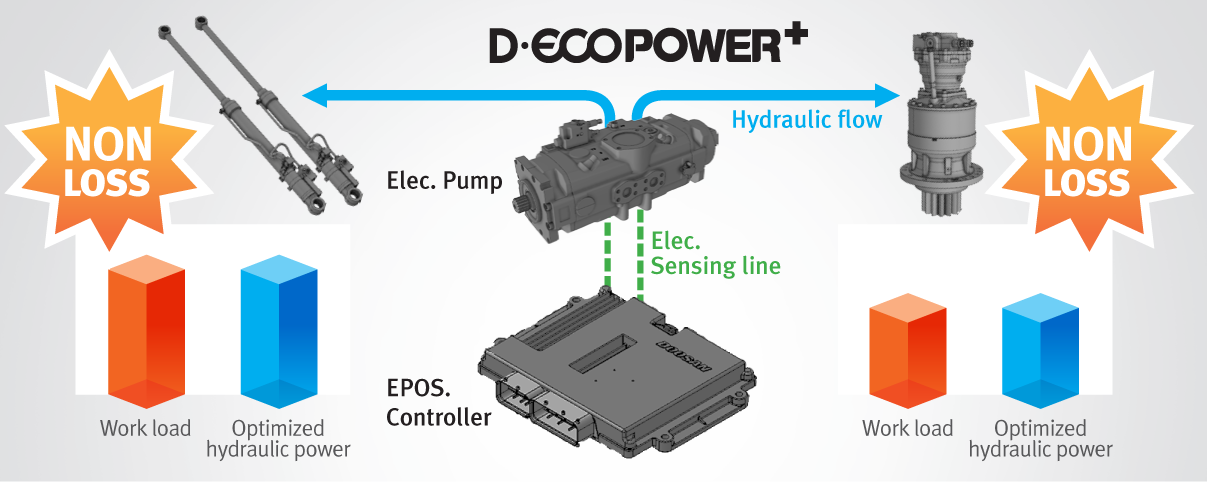

The Most Advanced Hydraulic System This new electronic main pump accurately calculates the amount of pump flow required for each actuator, thereby maximizing productivity (faster operation) and avoiding unnecessary fuel loss.
Images
Videos
360 View

MAINLY USED IN

Mining/Quarry

Infrastructure Construction

  • OPERATING WEIGHT

    76.9 ton

  • BUCKET CAPACITY (SAE HEAPED)

    3.42 m³

  • ENGINE POWER (SAE J1349, NET)

    354/1,800 kW/rpm

Home Equipment Excavators DX800LC-5B
Overview
  • Peerless Strength and Steadiness, Our Commitment to Your Success

    The DX800LC-5B is designed for maximum productivity with outstanding performance, durability and surprisingly high fuel efficiency. Serving as your reliable partner, it will enable you to work in harsh mining environments where avoiding downtime is critical.



  • Incomparable Durability

    Built with quality-proven main components and durable design for minimized downtime. Manufactured with the finest quality main components customized precisely for large equipment, this new machine offers the Best-in-Class power and durability.



  • Maximum Productivity

    The new engine and intelligent hydraulic system deliver the Best-in-Class productivity. Manufactured in a world-class facility for reliability and durability, the DX800LC-5B engine ensures many years of productive life to keep your machine running efficiently and effectively even under the toughest jobsite conditions.



  • Excellent Comfort and Safety

    Safety comes first with enhanced safety features. Be more productive and work more effectively at night with highly improved LED Work Lights and the 360-degree view from your cabin provided by the AVM system.



  • Convenient maintenance

    We offer an easy, breezy maintenance system that can also prevent downtime of your machine.



Specifications
Classification DX800LC-5B
Operating Weight 76.9 ton
Bucket Capacity (SAE HEAPED) 3.42 m³
Engine Power (SAE j1349, net) 354/1,800 kW/rpm
Engine Model 2506D Tier3
Travel Speed (High/Low) 4.8/2.9 km/h
Max. Digging Reach 13,195 mm
Max. Digging Depth 8,345 mm
Max. Digging Height 12,120 mm
Overall Length 13,165 mm
Overall Width 4,000 mm
Overall Height 4,865 mm
Attachments
H class Bucket image

H class Bucket

S class Bucket image

S class Bucket

X class Bucket image

X class Bucket

Breakers image

Breakers

Compare
Products
Classification
Operating Weight
Bucket Capacity (SAE HEAPED)
Engine Power (SAE j1349, net)
Engine Model
Travel Speed (High/Low)
Max. Digging Reach
Max. Digging Depth
Max. Digging Height
Overall Length
Overall Width
Overall Height
DX800LC-5B
76.9 ton
3.42 m³
354/1,800 kW/rpm
2506D Tier3
4.8/2.9 km/h
13,195 mm
8,345 mm
12,120 mm
13,165 mm
4,000 mm
4,865 mm
