DX220LC-2N_DX220-2N

Medium

/

Tier 3

DX140LC
DX140LCA
DX260LCA
DX220LCA-2
DX225LL
DX225NLCA
DX220A-2
DX220LC-7M
DX225LCA-7M
DX225LC-7M
DX200A-7M
DX300LCA-7M
DX300LC-7M
DX225LC-7
DX300LC-7K
DX140LCR-7
DX235LCR-7
DX220A-2M
DX260LC-7M
DX360LC-7B
DX220LCA-2M
DX300LC-7B
DX230LL-7M / DX230RB-7M
DX320LL-7M / DX320RB-7M
DX220LC-2N_DX220-2N
Brochure
Brochure
DX220LC-2N_DX220-2N_EN_low.pdf
Compare

MAINLY USED IN

  • OPERATING WEIGHT

    20.5 ~ 21.6 ton

  • BUCKET CAPACITY (SAE HEAPED)

    0.92~1.40 SAE/PCSA

  • ENGINE MODEL

    DEVELON DL06

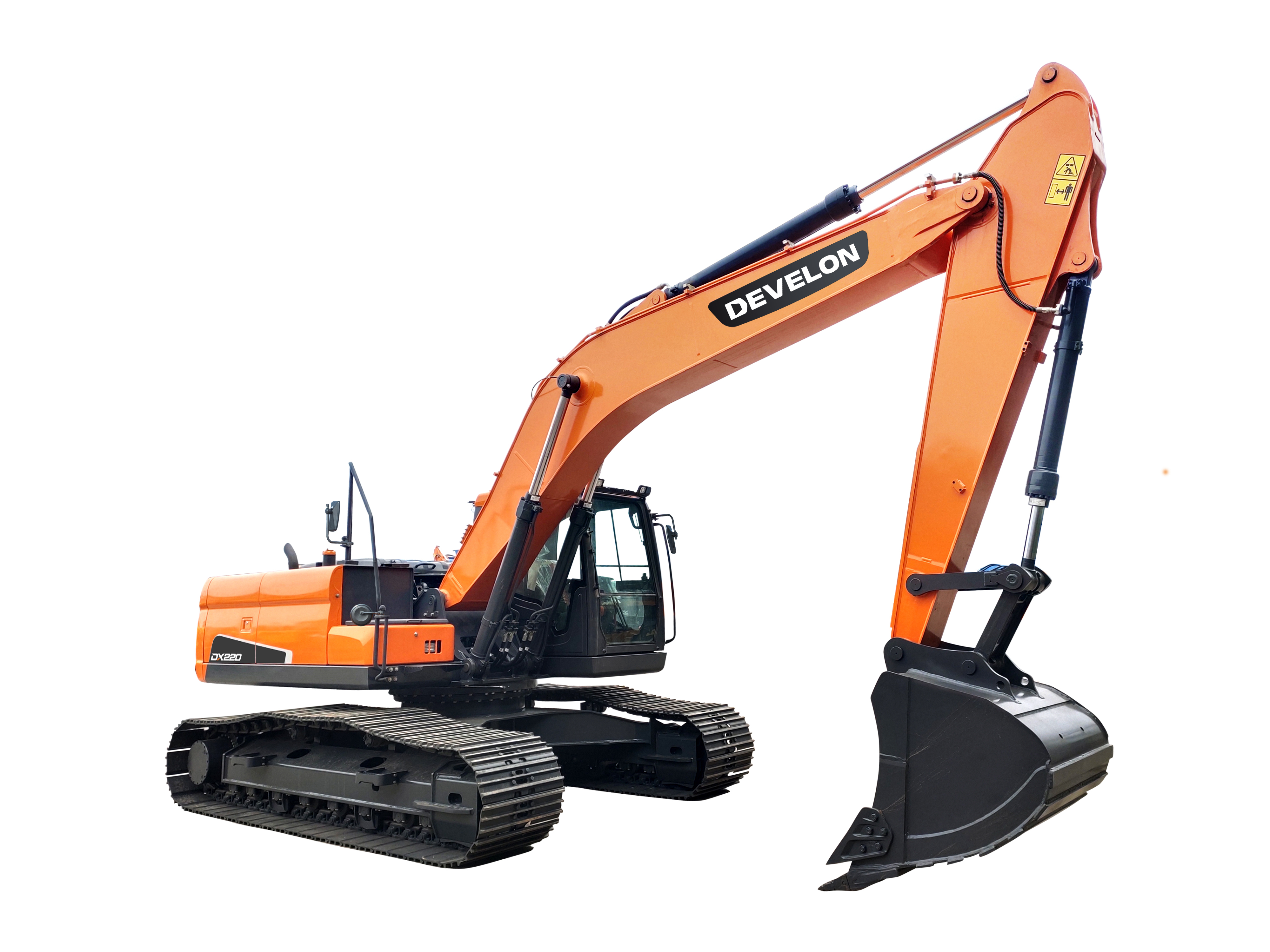

Home Equipment Excavators DX220LC-2N_DX220-2N
Overview
  • DEVELON DL06 ENGINE

    - DX220LC-2N/DX220-2N runs on DEVELON DL06 engines, one of the most widely-used engines.

    - The 6-cylinder engine delivers power up to 146HP (109kW, Net). High power and wide torque range at low RPM, which can also reduce the strain on the clutch and transmission.

  • FUEL FILLER PUMP

    - The fuel filler pump is applied as a standard to all types. It will be a essential feature which gives you chance to decrease the downtime.

  • QUALITY-PROVEN, RELIABLE FRAMES

    DX220LC-2N / DX220-2N is built with the frames and hydraulic systems that are proven to be high quality over along period of time.

    Count on us for all of your works.

    Main/bottom frames, undercarriage, swing bearing, sprocket roller, boom and arm are designed for a high degree of durablilty that you can rely on.

  • HEAVY-DUTY FRONT

    DX220LC-2N / DX220-2N is composed of reinforced castings, forged steel pivot points, reinforced heavy-duty arm, and boom to withstand high-impact materials.

    - To better protect the base of the arm, reinforced bars have been added and the arm center and end boss have been strengthened.

    Travel device, swing device and center joint are also verified for their high quality.

Specifications
Classification DX220LC-2N_DX220-2N
Operating Weight 20.5 ~ 21.6 ton
Bucket Capacity (SAE HEAPED) 0.92~1.40 SAE/PCSA
Engine Model DEVELON DL06
Engine Power (SAE j1349, net) 113 kW (154 PS) @ 1,800 rpm (SAE J1995, Gross) 109 kW (148 PS) @ 1,800 rpm (SAE J1349, Net)
Travel Speed 2.96 / 5.12 km/h
Max. Digging Reach 9,470 ~ 9,890mm
Max. Digging Depth 6,110 ~ 6,615mm
Max. Digging Height 9,510 ~ 9,620mm
Overall Length 9,545 ~ 9,520mm
Overall Width 2,990mm
Overall Height 2,965 ~ 3,175mm
Compare
Products
Classification
Operating Weight
Bucket Capacity (SAE HEAPED)
Engine Model
Engine Power (SAE j1349, net)
Travel Speed
Max. Digging Reach
Max. Digging Depth
Max. Digging Height
Overall Length
Overall Width
Overall Height
DX220LC-2N_DX220-2N
20.5 ~ 21.6 ton
0.92~1.40 SAE/PCSA
DEVELON DL06
113 kW (154 PS) @ 1,800 rpm (SAE J1995, Gross) 109 kW (148 PS) @ 1,800 rpm (SAE J1349, Net)
2.96 / 5.12 km/h
9,470 ~ 9,890mm
6,110 ~ 6,615mm
9,510 ~ 9,620mm
9,545 ~ 9,520mm
2,990mm
2,965 ~ 3,175mm
